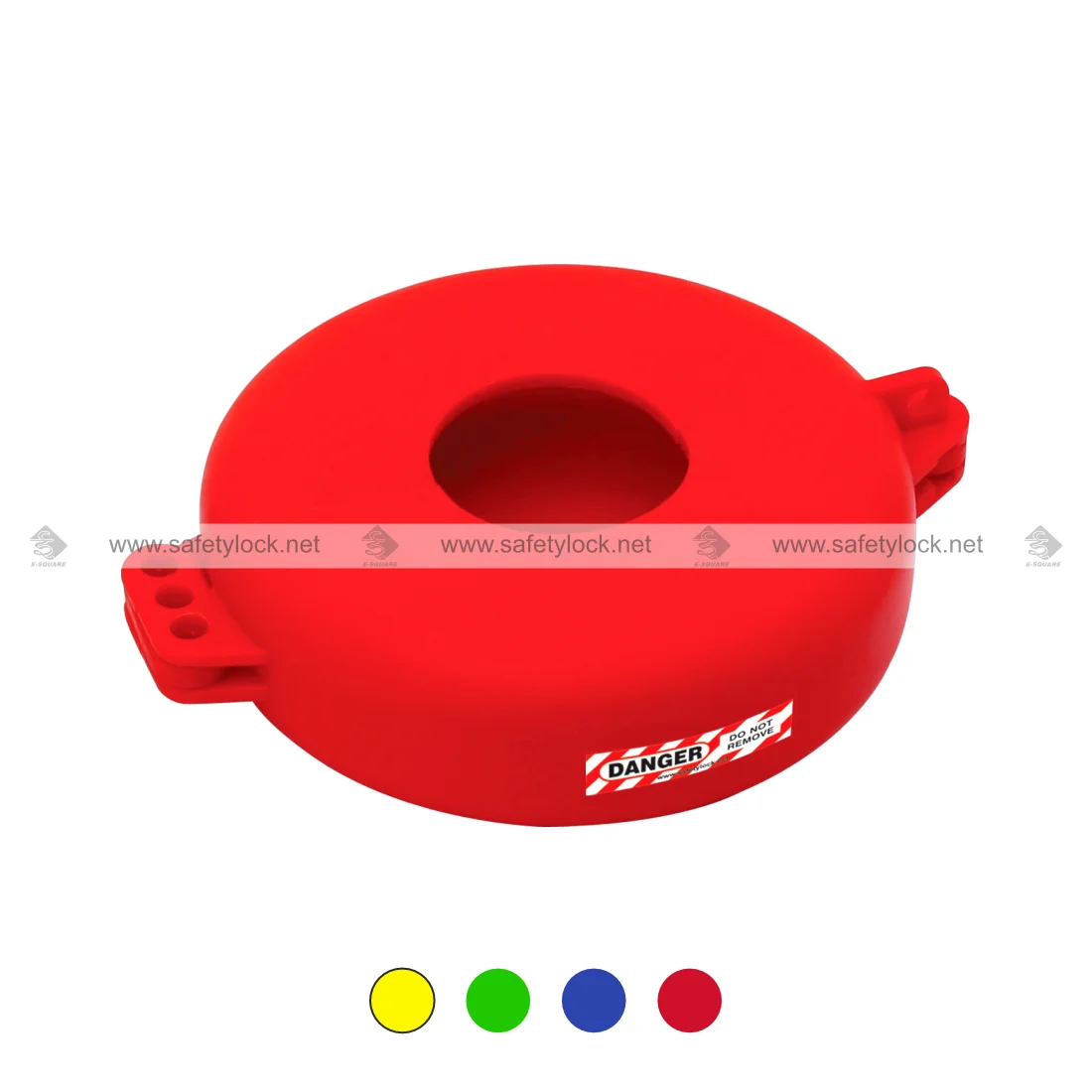

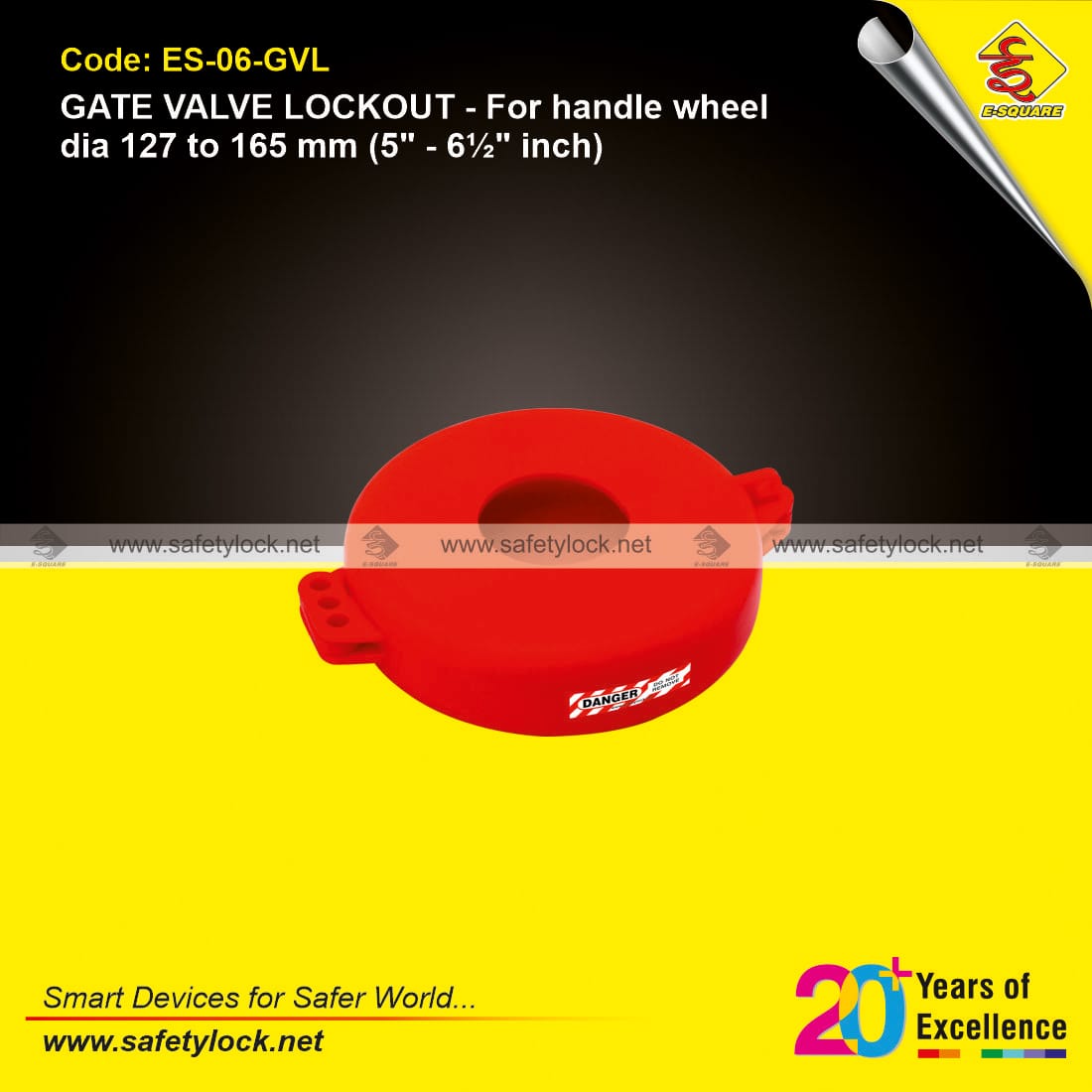

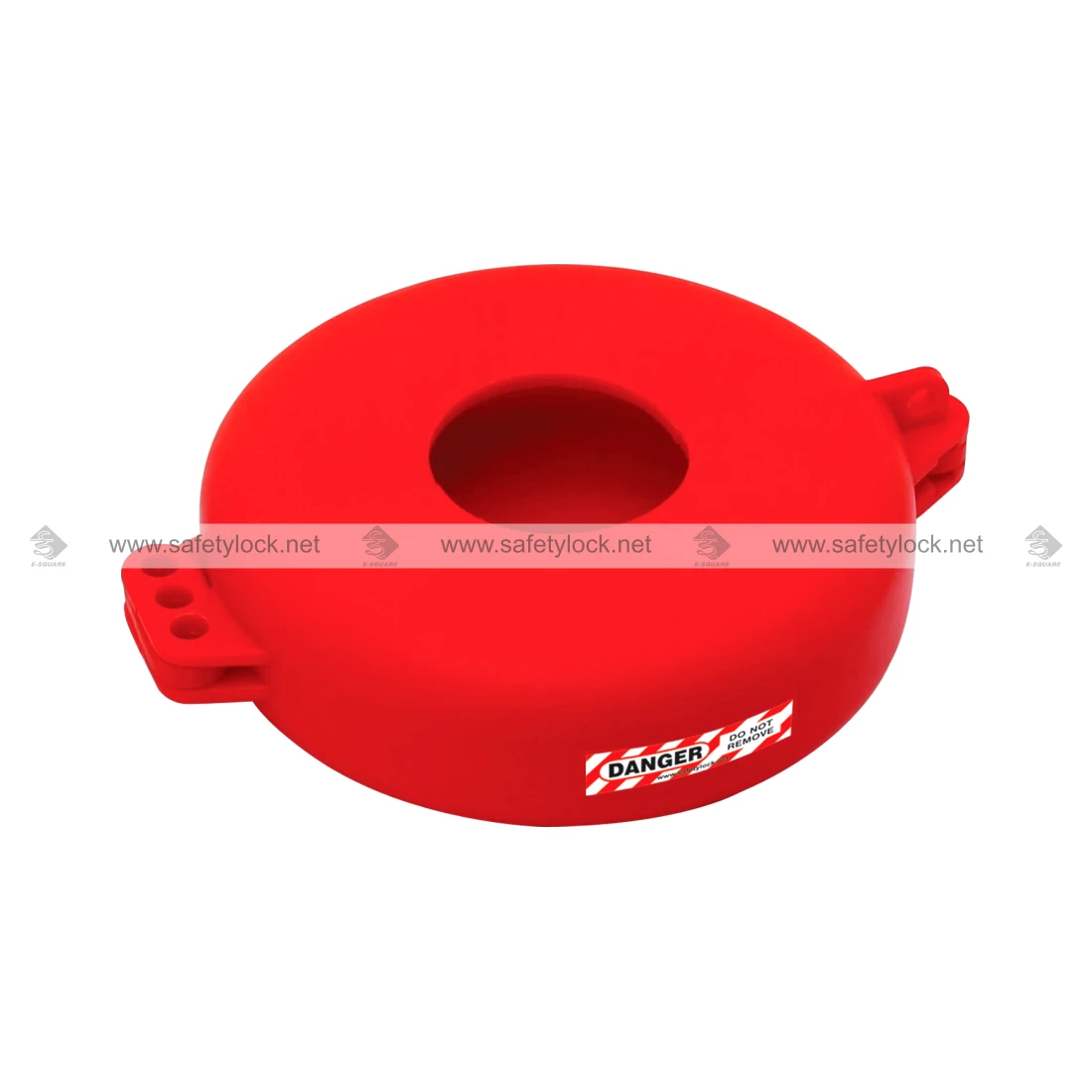

Gate Valve Lockout – For Handle Wheel Dia 127 To 165 mm

Code:ES-06-GVL

A robust gate valve lockout device designed for valve handle wheels with diameters between 127 To 165 mm, made from durable polyurethane and designed to withstand various temperatures.

  • Accommodates a wide range of valve handle diameters
  • Secure the lockout using a padlock or hasp
  • Versatile design compatible with OS & Y or “rising stem” valves
Categories:
Add To Quote

Product Description

  • The Gate Valve Lockout is a durable and reliable device designed to lock gate valves in the closed position.
  • The valve covers are made from strong polyurethane plastics that are virtually indestructible. They are resistant to cracking and abrasion, ensuring long-lasting performance.

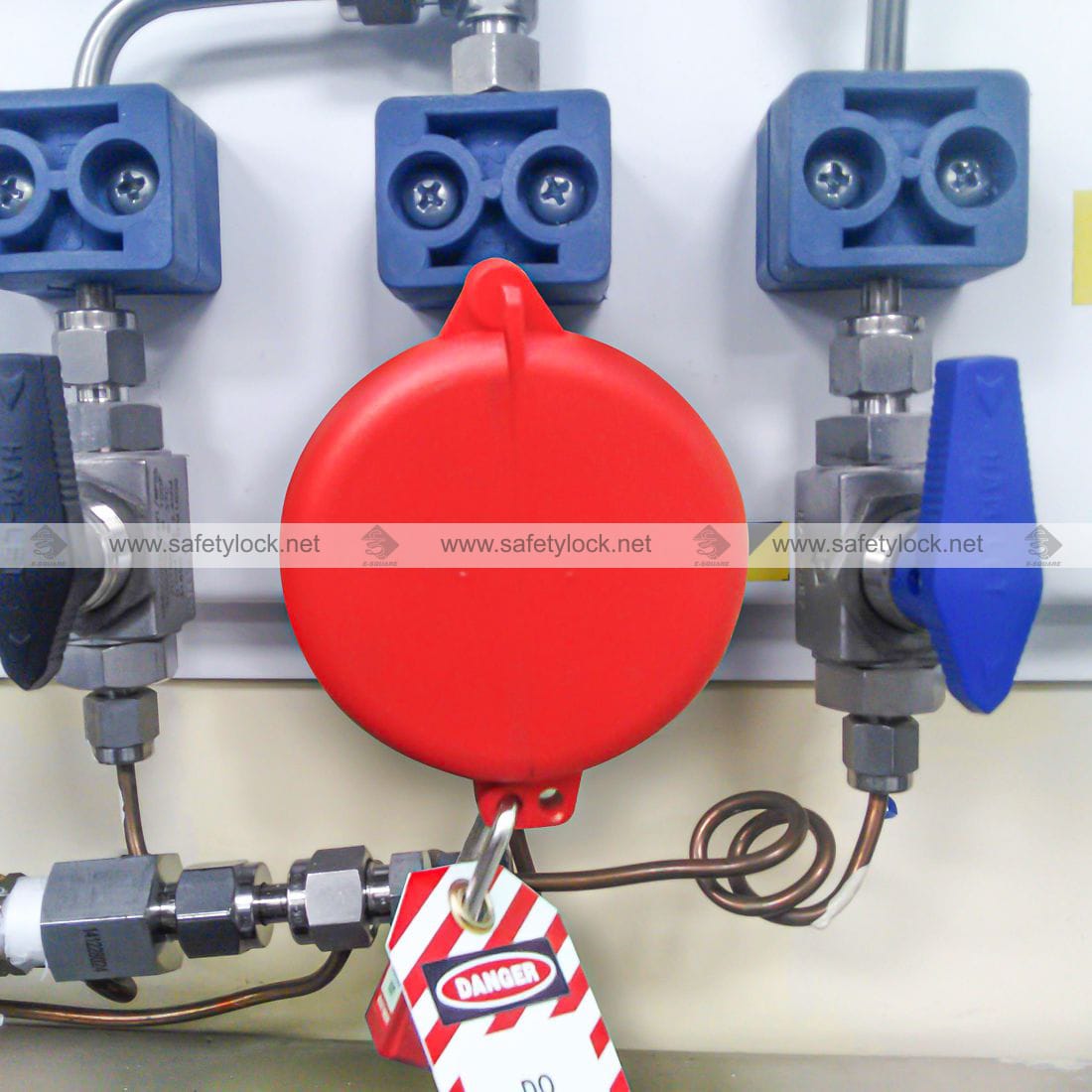

  • Once locked, the covers rotate freely around the hand wheel of the valve, preventing the valve wheel from being turned and keeping the valve securely locked.
  • Withstands temperatures from -20°C to 90°C.
  • The lockouts are available in 5 different sizes, with red being the standard colour. Other colours can be requested for larger quantities. Please specify the desired colour when placing an order.
  • Each gate valve lockout device is equipped with padlock holes. Hasps and padlocks can be used to lock these lockouts.
  • The unique knockout center of the lockout device can accommodate OS & Y (Outside Screw and Yoke) or “rising stem” valves, making it versatile for various valve configurations.

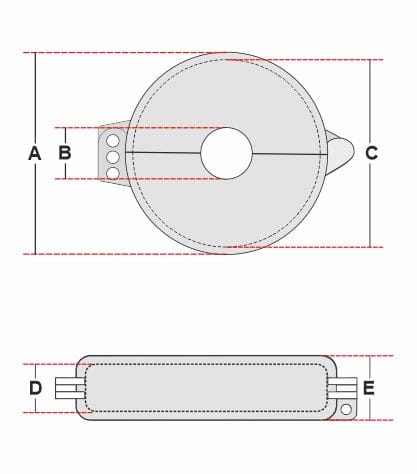

Specifications

Outside Dia (A)176 mm
Neck Dia (B)63 mm
Inside Dia (C)167 mm
Inside Depth (D)38 mm
Outside Depth (E)52 mm
