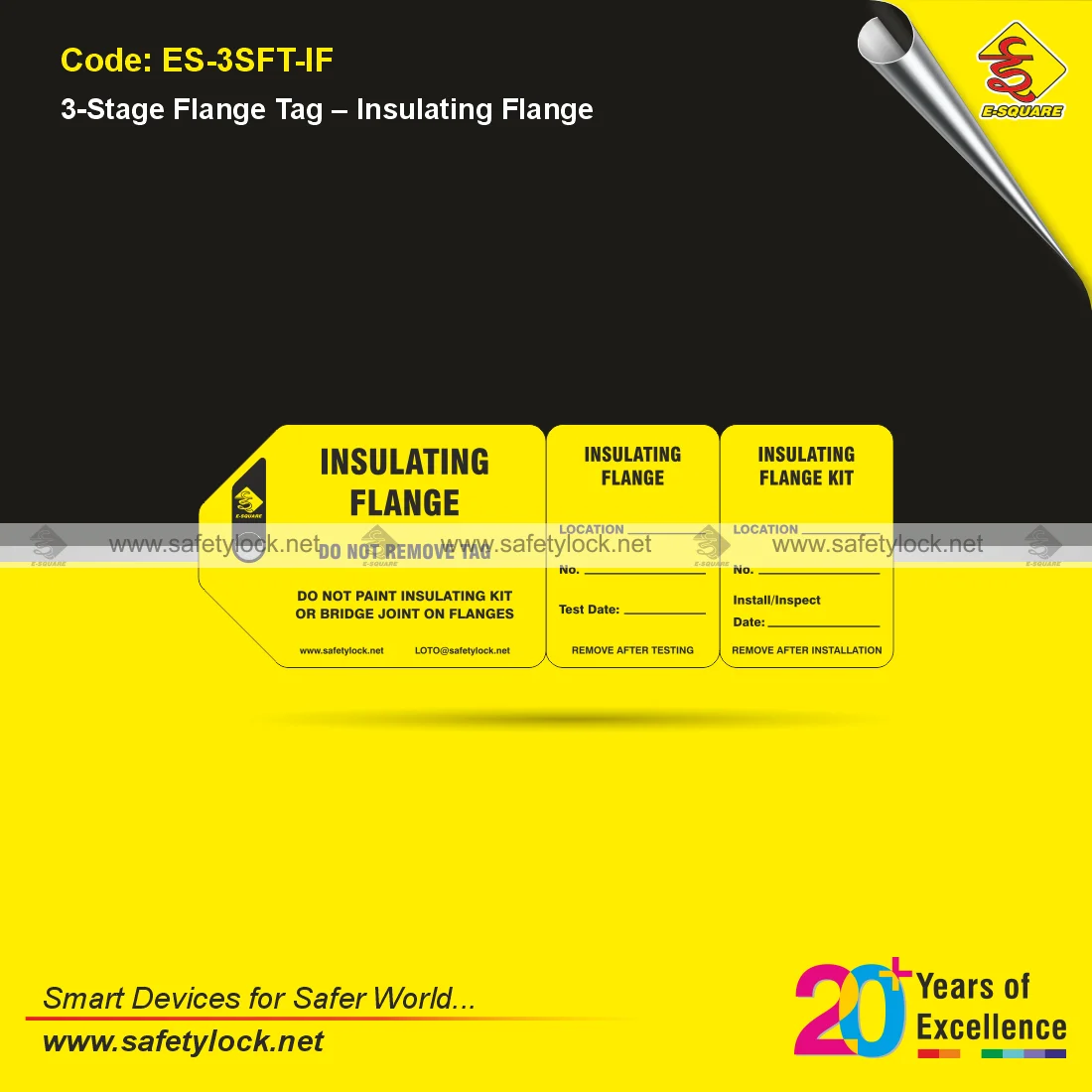

3-Stage Flange Tags – Insulating Flange

Code:ES-3SFT-IF

The 3-Stage Insulating Flange Tags are specifically designed to identify, verify, and document the installation of insulating flange kits used to prevent static electricity or stray current from travelling across pipeline joints. With three sequential tear-off sections, they create a clear audit trail.

  • Confirms that insulating flange kits are correctly installed and maintained.
  • Tear-off sections create an auditable record for QA/QC teams.
  • Clear Visual Warning.
  • We offer full customisation support including engraved sequential numbering, QR codes, multiple languages, colour coding, site-specific text, single colour logo, etc.
Categories:

100000 in stock

Add To Quote

Product Description

  • Purpose-built for insulating flanges, which isolate sections of pipelines to stop static electricity or stray current transfer.
  • Provides a 3-stage checklist to ensure correct installation and verification:
    1. Main Tag: “INSULATING FLANGE – DO NOT REMOVE” warning, stays attached to the joint.
    2. Stage 2 Section: Records flange location, kit number, and test date, retained by QA/QC for compliance records.
    3. Stage 3 Section: Confirms installation and inspection date, retained for long-term traceability.
  • Bright yellow background with bold black text ensures visibility and prevents misinterpretation, even in low-light or outdoor conditions.
  • Writable fields for location, kit number, test results, inspector/installer details, and dates, providing accountability.
  • 3-stage flange tags – insulating flange is manufactured using durable 0.5mm PVC sheets.
  • Also Available in durable PVC (0.3mm, 0.7mm) or Non-Tearable Paper, ensuring long-lasting use (MOQ Applicable).
  • Resistant to tearing, chemicals, oil, water, and dirt, suitable for harsh outdoor conditions.
  • Pre-punched 8mm hole allows attachment using cable ties or fasteners.
  • Commonly used in oil & gas terminals, refineries, chemical plants, offshore rigs, storage depots, and pipeline networks where insulating kits are critical.

Specifications:

Stages3
MaterialDurable PVC (0.3mm/0.5mm/0.7mm) or Non-Tearable Paper (0.5mm Standard)
Standard Size200mm x 70mm
Perforations2
EdgesRounded
WriteableYes
Print1 Colour Print - 1 Side
Insulating FlangeLaser Engraved (Please mention at the time of order placement)
Available as a KitYes (50 Tags + 1 Pen)
Mounting Hole8 mm
Pack Size25 PK / 50 PK / 100 PK (Standard Pack - 25 Pieces)
Customisation *MOQ ApplicableFully customisable design to customer needs - Text prints, stage-perforation, engraved sequential numbering, single colour logo, QR codes / barcodes, colour-coding, languages (single or bilingual), optional brass reinforced eyelets, kit or standard pack, etc.
